XXP-60

1.Product Introduction：

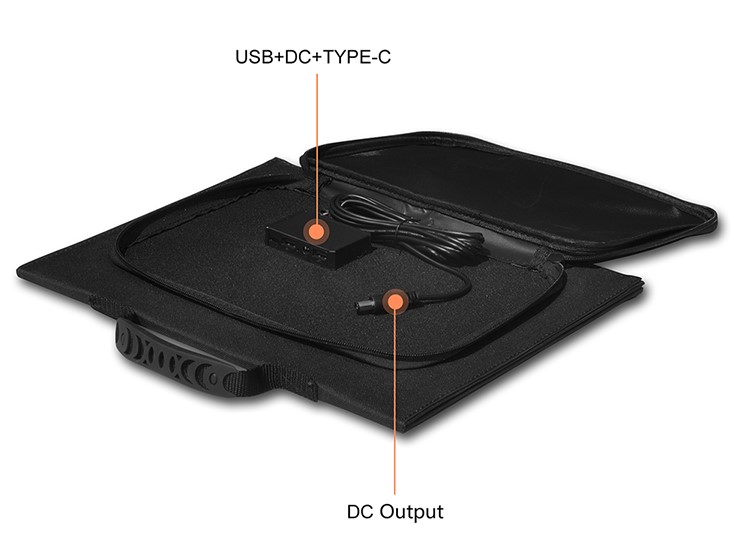

Solar portable folding bag is a product that converts solar energy into electricity. It can charge for 5V/9V/12V/15V/18V through a special port.

2.Product Features：

High-efficiency solar cell, conversion rate up 21-23%，with beautiful appearance，light and practical characteristics.

3.Usage：

Open the product and lay it flat on the grass or lean against the support facing the sun. Solar folding directly facing the sunlight, which can make convert solar energy into electricity in most efficient way.

4.Overall size：

1. Folding method：1*4fold

2. Color of appearance：dark teal（As shown in figure ）

3. Folding size：358*290*55mm  ±3mm

4. open size：1190*358*30mm  ±3mm

5.Weight：

    Weight：2.2Kg±0.1Kg

6.Solar folding bag working method ：

18 cells of a single solar panel are connected in series；solar folding bag（total 72PCS solar panel）4Pcs in series circuit.

9.  Solar folding bag performance parameters of standard： （Test condition : 1000W/ m2 (100000LUX) or luminance of halogen tungsten lamp : 38000LUX）

10.Warranty period:

1.Component warranty period：1 year。

11.Environmental conditions for use and storage：

1. Storage conditions：normal temperature，humidity no more than 60％。

2. Use in outdoor environment without shade under the sun。

3. Working environment temperature：－20℃~60℃。

4. Dust and water proof grade of solar panel：IP65。

12.Precautions for transportation, use and storage environment conditions：

1. The product shall not connect with highly corrosive substances.

2. Avoid hard objects hitting and scratching the surface during use.

3. Unable to withstand bending stress during transportation and assembly.

4. Use and storage temperature condition:－20℃---60℃

13. Appearance inspection conditions and requirement Finished inspection standard：

 1. Environment illuminance: the lighting brightness value above 500LUX in detected part (equivalent to 40W daylight

        lighting intensity).

    2. Inspection method and angle: visual, line of sight and surface angle of the subject rotated in the range of 15°-90°.

    3. Inspection distance and time : the one eyes distance is about 30cm from the surface of the subject, and the time of each          inspection surface is 3-5 seconds.

    4. Visual acuity requirements: uncorrected or corrected visual acuity should be 1.0 and there should be no color blindness.

    5. Appearance check using stain standard card comparison
